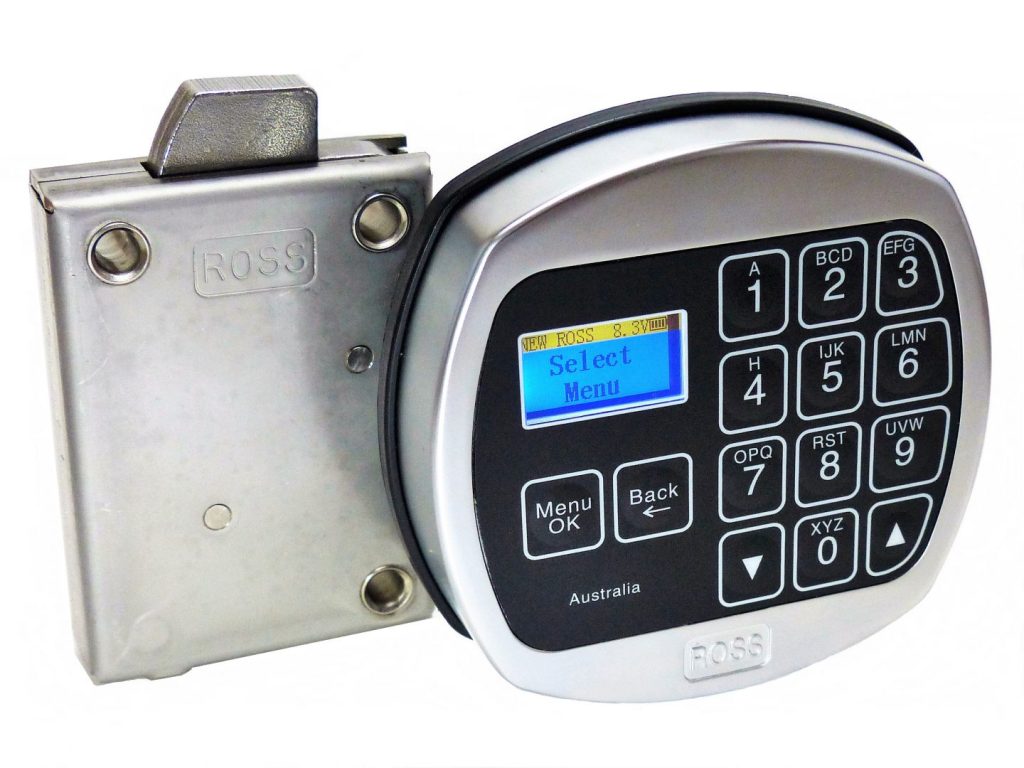

Stronghold L22 Safe Lock Option
Stronghold L22 Safe Lock Option
An advanced 30-user electronic safe lock built on an LCD screen-driven menu system, extending the L02 with critical security additions: Open under Duress interface, LCD Audit Trail display, Duress Time-Delay, Dual-Mode and Multi-Door support.
Category: Safe Locks
Key Features
LCD Screen-Driven Menu
An advanced 30-user electronic safe lock built on an LCD screen-driven menu system, extending the capabilities of the L02.
Open Under Duress + Audit Trail
Critical security additions: an Open under Duress interface and an LCD Audit Trail display.
Duress Time-Delay, Dual-Mode & Multi-Door
Duress Time-Delay, Dual-Mode and Multi-Door support.
Duress Time-Delay, Dual-Mode and Multi-Door support.
Supports 2 Managers + 28 standard Users plus a Super-Code emergency override, uses a 6-digit code.
Extreme-Temperature Rated, Australian Made
Built to operate from -25°C to +60°C, retrofit to the standard international footprint, Australian Made and patented, with an 18-month warranty on the electronics.
User Hierarchy
- User 1 & User 2: Managers (full administrative control)
- Users 3–30: Standard access users (28 user slots)
- Super-Code: emergency override code — also used to reset the Manager Code if forgotten
- Factory Reset: returns the lock to original factory settings
⚠️ The lock is distributed with a factory-set User 1 Manager Code. Change this code immediately on first use.
Basic Operation — Opening the Lock
ⓘ Instructions must be completed within 15 seconds, otherwise the system times out and the operation must be restarted.
Open Under Duress
The L22 includes a Duress interface facility. When activated, entering a configured duress code (or sequence) opens the lock normally for the threat actor while silently triggering an alarm or notification through the connected interface. Refer to the official Operating Instructions PDF for setup.
User Management (Manager Only)
All programming functions are driven by the on-keypad LCD menu. Always perform with the safe door open. Available functions:
- Set / reset the Manager Code
- Set / reset User Codes
- Disable / Enable a User Code (temporarily suspend access)
- Delete a single user · Delete ALL users
- Reset the Manager Code via Super-Code (emergency use)
- Factory Reset (returns the lock to default state)
Operating Facilities (Manager Only)
The L22 menu system gives the Manager access to the following operating facilities:
Time-Delay
Programmable waiting period between code entry and bolt release, to deter coercion and forced openings.
Duress Time-Delay
Separate time-delay rules for duress entries.
Dual-Mode
Requires two independent valid codes to open the safe (two-person rule).
Multi-Door Option
Control multiple lock bodies from a single entry pad / Manager profile.
LCD Audit Trail
View audit events on the screen, or upload the audit log to a PC for detailed monitoring.
Wrong Entry Penalty
- 4 consecutive invalid entries triggers a 4-minute lockout
- During lockout, the keypad will not respond to any entries — the countdown is shown on the LCD
- Wait for the lockout to clear, then re-enter a valid code
Power & Battery
- Battery: 1 × 9V Alkaline (Duracell or Energizer recommended)
- Battery life: approximately 1 year under normal use
- Static current: 50 µA · Power supply range: DC 4.5V – 12.0V · Low battery threshold: 5.2V
- Low-battery icon shown on the LCD — replace promptly
- Non-volatile memory: codes, settings and audit trail are retained during battery replacement
Key-Override / Mechanical Override
The L22 is supplied with a Swivel-Bolt as standard. Two override options are available:
- Key-Override (Swivel-Bolt only): 6 pick-resistant levers with restricted profile WAVE key (optional, supplied on request)
- Dead-Bolt lock body option: available, but key-override is NOT available with the Dead-Bolt version
Specifications
| Code length | 6 digits |
| User capacity | 30 (2 Managers + 28 Users) + Super-Code |
| Display | LCD screen with menu navigation |
| Audit Trail | LCD display |
| Power | 1 × 9V Alkaline battery |
| Working Temperature | -25°C to +60°C |
| Working Humidity | <90% |
| Auto re-lock | 4 seconds |
| Wrong-try lockout | 4 minutes after 4 invalid attempts |
| Warranty | 18 months on the electronics |
| Origin | Australian Made, patented · retrofit footprint |
